Gridworx Product Catalog

Print PDF Version
ImagesPart NamePart NumberDescription
Starter J Course Anchor 001Starter J Course Anchor (12ft in length)
Starter J Course Anchor Black 001BStarter J Course Anchor (12ft in length) - BLACK
Intermediate T Anchor 002Intermediate T Anchor (12ft in Length)
Intermediate T Anchor Black 002BIntermediate T Anchor (12ft in Length) - BLACK
Top Course J Anchor 003Top Course J Anchor (12ft in Length)
Top Course J Anchor Black 003BTop Course J Anchor (12ft in Length) - BLACK
Standard T Anchor 004Standard T Anchor (12ft in Length) Used for soffit conditions- window surrounds
Standard T Anchor Black 004BStandard T Anchor (12ft in Length) Black - Used for soffit conditions- window surrounds
Moderate Intermediate T 052Moderate Intermediate T Anchor used for smaller panel sizes
Moderate Intermediate T Black 052BModerate Intermediate T Anchor used for smaller panel sizes
Ext. Backplate Starter J 101Extended Back-plate Starter J (12ft in Length)
Ext. Backplate Starter J Black 101BExtended Back-plate Starter J (12ft in Length) BLACK
Ext. Backplate Intermediate T 102Extended Back-plate Intermediate T (12ft in Length)
Ext. Backplate Intermediate T 102BExtended Back-plate Intermediate T (12ft in Length) BLACK
Ext. Back Plate Top J 103Extended Backplate Top J (12ft in Length)
Ext. Back Plate Top J Black 103BExtended Backplate Top J (12ft in Length) BLACK
Soffit Standard T Anchor 104Soffit Standard T Anchor (12ft in Length) Used for soffit conditions- window surrounds
Soffit Standard T Anchor Black 104BSoffit Standard T Anchor (12ft in Length) - BLACK - Used for soffit conditions- window surrounds
Interior Starter J Anchor 201Interior Starter J Anchor- Used to install central field panel for Thin Panel System / Priced per 12ft length
Interior Intermediate T Anchor 202Interior Intermediate T Anchor- Used to install central field panel for Thin Panel System / Priced per 12ft length
Interior Top J Anchor 203Interior Top J Anchor- Used to install central field panel for Thin Panel System / Priced per 12ft length
Slim Extended Starter J Anchor 211Slim Extended Starter J used to install bottom course of interior stone panels or in conjunction with Fork attachments (12ft in Length)
Slim Ext Intermediate T Anchor 212Slim Extended Intermediate T anchor used to install middle course Interior stone panels (12ft Lengths)
Slim Extended Top J Anchor 213Slim Extended Top J anchor used to install middle course Interior stone panels (12ft Lengths)
Thin Panel System Starter J 301Thin Panel Starter J - Used to install bottom courses for Thin Panel System / Priced per 12ft length
Thin Panel System Intermediate T 302Thin Panel Intermediate T- Used to install central field panel for Thin Panel System / Priced per 12ft length
Thin Panel System Top J Anchor 303Thin Panel Top J - Used to attach top course panel for Thin Panel System / priced per 12ft length
Planx Saddle Clip 305PLANX Saddle Clip to be adhered to back of panel- continuous top and bottom (Priced per ft)
Planx Rebated Saddle Clip 306Rebated PLANX Saddle Clip Adhered to back of panel- continuous top and bottom / Used at Top of walls and Deflection Joints (Priced per ft)

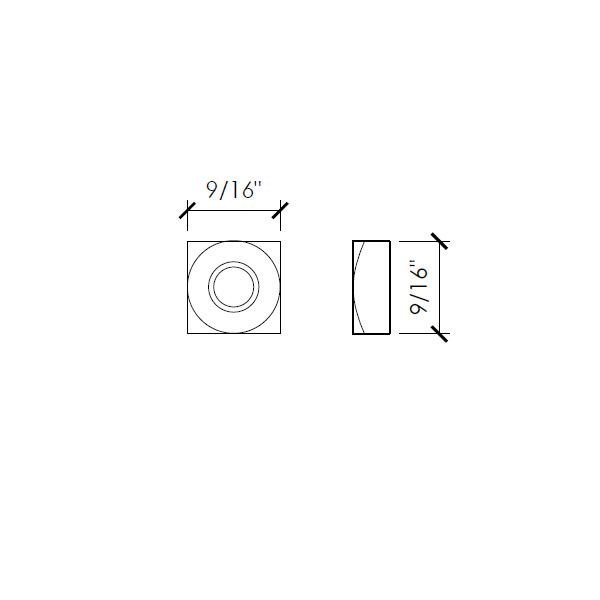

Nut - Pitch Adjustment 322Pitch Adjustment Nut - 5/16in / Used with Ultra Anchor System
Bolt - Pitch Adjustment - LONG 323Pitch Adjustment Bolt 5/16-18x1-1/2 / used with Ultra Anchor
Bolt - Pitch Adjustment 324Pitch Adjustment Bolt 5/16-18x1-1/8 / Socket Head / used with Ultra Anchor
Undercut System Fork 350Undercut System Fork - Attached to back of panel / Used with Locking Plate / priced and delivered per 12ft length
Undercut System Locking Plate 355Undercut System Locking Plate - Attached to back of panel / Used with Undercut Fork / Priced per 3in piece
Deadload Panel Anchor 500Ultra Deadload Panel Anchor - Priced and delivered in 12ft lengths

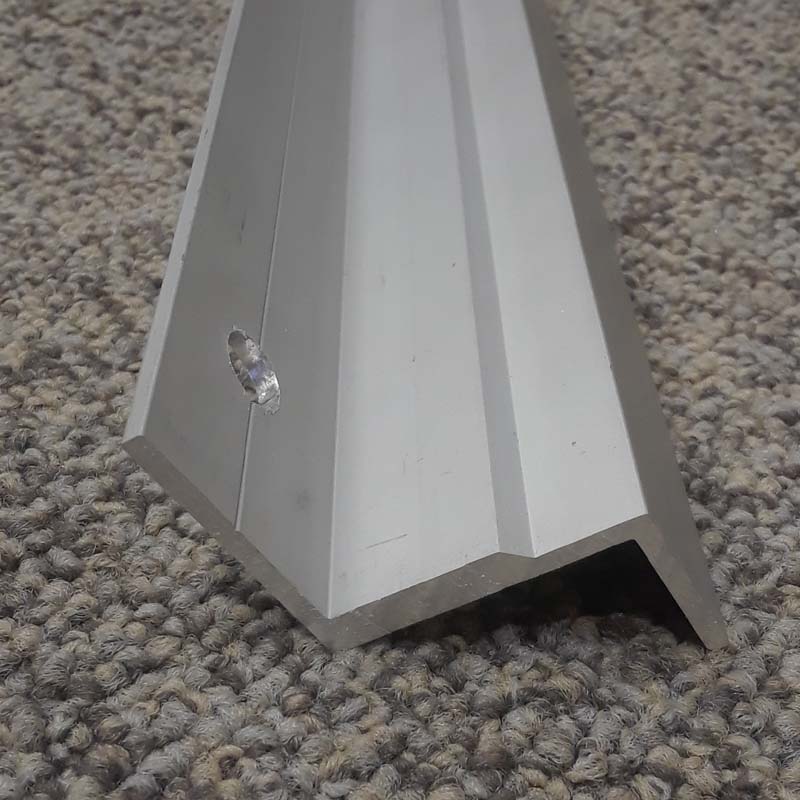

Deadload Substrate Anchor 501Ultra Deadload Substrate Anchor - (12 ft in Length) pre-punched slots are for alignment use only, not for structural attachment
Deadload Substrate Anchor 501BUltra Deadload Substrate Anchor - (12 ft in Length) / BLACK
Windload Panel Anchor 502Ultra Windload Panel Anchor - Priced and delivered in 12ft lengths

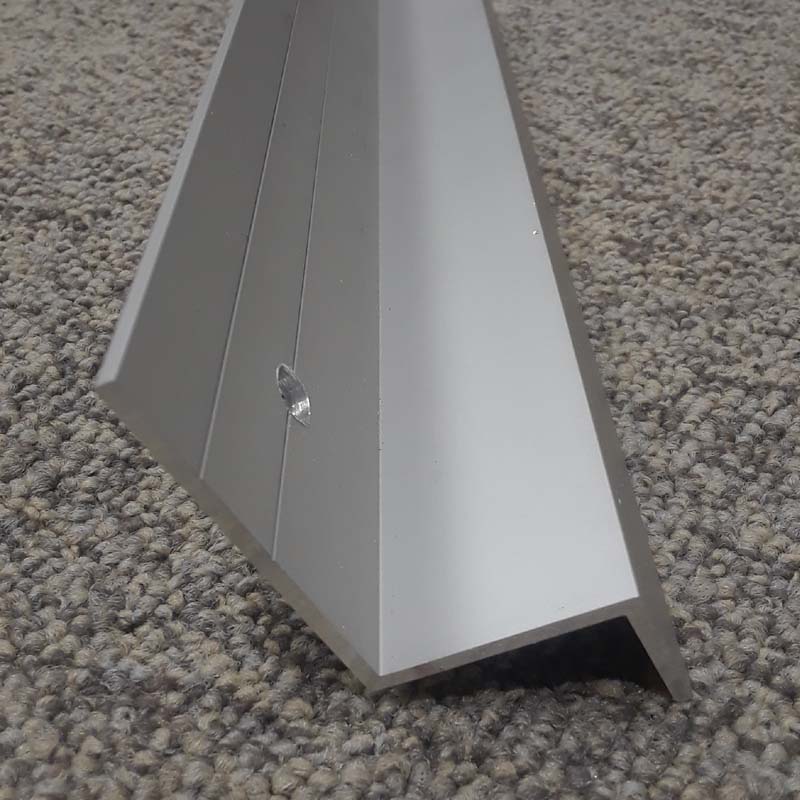

Windload Substrate Anchor 503Ultra Windload Substrate Anchor - (12 ft in Length)
Windload Substrate Anchor 503BUltra Windload Substrate Anchor - (12 ft in Length) / BLACK
Ultra Locking Plate 8mm 505AUltra Locking Plate - used with Ultra Deadload Panel Anchor - priced per 3in piece / Used with Fischer M8 anchor / 21/64in hole pre-drilled
Ultra Locking Plate 6mm 505BUltra Locking Plate - used with Ultra Deadload Panel Anchor - priced per 3in piece / Used with Fischer M6 anchor or KEIL anchor / 1/4in hole pre-drilled
Corner Return Angle 540Corner Return Angle Attachment / Priced and delivered in 12ft lengths
Rotational Undercut Anchor 550Rotational Undercut Anchor - priced and delivered per 12ft length / used to attach to back of stone using undercut anchor bolt
Mechanical Kerf Anchor 560Mechanical Kerf Anchor - priced and delivered per 12ft length / used to attach to back of stone using undercut anchor bolt
Kerf Locking Plate / 8mm hole 565AKerf Locking Plate - used with Rotational Undercut Kerf Anchor - priced per 3in piece / Used with Fischer M8 anchor / 21/64in hole pre-drilled
Kerf Locking Plate / 6mm hole 565BKerf Locking Plate - used with Rotational Undercut Kerf Anchor - priced per 3in piece / Used with Fischer M6 anchor or KEIL anchor / 1/4 in hole pre-drilled
Ultra XL Deadload Support Anchor 570Ultra XL Deadload Support Anchor - (provided in 4in pieces with square punch) / Mill Finish
Ultra XL Windload Panel Anchor 571Ultra XL Windload Panel Anchor - (provided in 4in pieces with square punch) / Mill Finish
Wall Anchor 571AUltra XL Wall Anchor - (12 ft in Length) / Mill Finish ULTRA XL - To install large panels of Natural Stone most likely 2" thick - 4" thicknesses (Designed for use with Keil, Fischer, and others)
Ultra 3.0 Locking Plate 575BUltra 3.0 Locking Plate - used with Ultra Deadload Support Anchor - priced per 3in piece / Used with 1/4in T-31 anchor / 9/32in hole pre-drilled
ULTRA L DL Panel Anchor 5804" pcs fabricated and assembled. ULTRA L - To install large format panels of Dekton, Porcelain tile, and other thin USC type materials ranging from 6mm - 12mm thicknesses. (Designed for use with Fischer and T-31)
WL Panel Anchor 581-A4" pcs fabricated squares included. ULTRA L - To install large format panels of Dekton, Porcelain tile, and other thin USC type materials ranging from 6mm - 12mm thicknesses. (Designed for use with Fischer and T-31)
ULTRA L Wall Anchor 581A12ft continuous pcs (mo modifications required). ULTRA L - To install large format panels of Dekton, Porcelain tile, and other thin USC type materials ranging from 6mm - 12mm thicknesses. (Designed for use with Fischer and T-31)

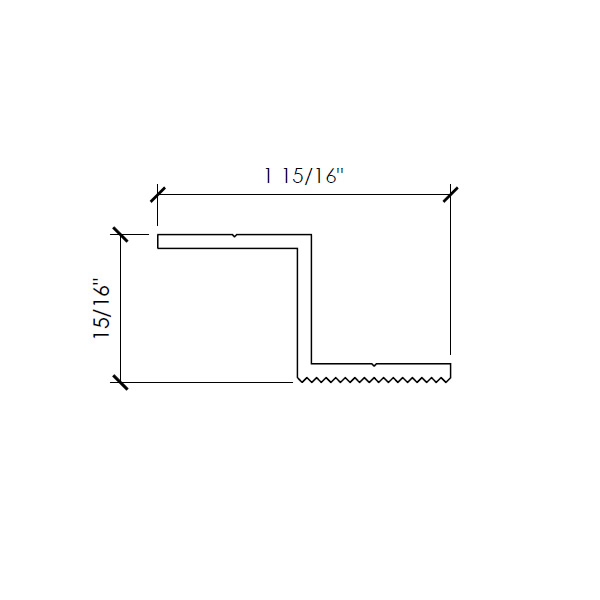

1in Depth Vertical Mullion A1011in Depth Vertical Mullions - Attached Vertically with Discrete Z-Girts / Priced per 12ft section
2in Adjustable Discrete Girt A2022in Adjustable Discrete Girt - Used with Adjustable Vertical Mullions - Priced per 4.375in length piece
3in Adjustable Discrete Girt A2033in Adjustable Discrete Girt - Used with Adjustable Vertical Mullions - Priced per 4.375in length piece
4in Adjustable Discrete Girt A2044in Adjustable Discrete Girt - Used with Adjustable Vertical Mullions - Priced per 4.375 inch length piece
5in Adjustable Discrete Girt A2055in Adjustable Discrete Girt - Used with Adjustable Vertical Mullions - Priced per 4.375in length piece
6in Adjustable Discrete Girt A2065in Adjustable Discrete Girt - Used with Adjustable Vertical Mullions - Priced per 4.375in length piece
1-1/2in Adj Vertical Mullion A2111-1/2in Adjustable Vertical Mullions - Attached Vertically - Used with Adjustable Discrete Girt - Priced per 12ft length
2inAdjustable Vertical Mullion A2122in Adjustable Vertical Mullion - Attached Vertically - Used with Adjustable Discrete Girt - Priced per 12ft length
2.25in Adj Vertical Mullion A2142.25in Adjustable Vertical Mullion - Attached Vertically - Used with Adjustable Discrete Girt - Priced per 12ft length
2.75in Adj Vertical Mullion A2152.75in Adjustable Vertical Mullion - Attached Vertically - Used with Adjustable Discrete Girt - Priced per 12ft length
3in Adj Vertical Mullion A2163in Adjustable Vertical Mullion - Attached Vertically - Used with Adjustable Discrete Girt - Priced per 12ft length
3.5in Adj Vertical Mullion A2173.5in Adj Vertical Mullion- Used with Adjustable Vertical Mullions - Priced per 4.375in length piece
4in Adj Vertical Mullion A2184in Adjustable Vertical Mullion - Attached Vertically - Used with Adjustable Discrete Girt - Priced per 12ft length
5in Adj Vertical Mullion A2205in Adjustable Vertical Mullion - Attached Vertically - Used with Adjustable Discrete Girt - Priced per 12ft length
Intermediate Support Fork Anch B110Intermediate Support Fork attached to the back of the stone and substrate to create Intermediate support when installing larger panels. Priced per 12ft length.
Closure Bar B200Closure Bar - Connects Intermediate Support Forks for large panels / 12ft lengths
Self Adhesive Foam Tape 1/8in C001Self Adhesive Foam Tape 1/8in 100 ft length (Used with 1/4in L-Brackets)
Self Adhesive Foam Tape 1/4in C002Self Adhesive Foam Tape 1/4in 50 ft length (Used with L-Brackets)
Self Adhesive Foam Tape 1/2in C003Self Adhesive Foam Tape 1/2in 25 ft length (Used with L-Brackets)
Self Adhesive Foam Tape 3/8in C004Self Adhesive Foam Tape 3/8in 25 ft length (Used with L-Brackets)
Shims 1/16in X 3.5in C100High Impact Horse Shoe Shims 1/16 X 3.5in (1000 count)
Shims 1/8in X 3.5in C101High Impact Horse Shoe Shims 1/8 X 3.5in (1000 count)
Shims 1/4in X 3.5in C102High Impact Horse Shoe Shims 1/4 X 3.5in (1000 count)
Shims 1/2in X 3.5in C103High Impact Horse Shoe Shims 1/2 X 3.5in (500 count)
Shims 1/32in X 3in C104High Impact Horse Shoe Shims 1/32 X 3in (1,000 count)
3/8in Open Cell Backer Rod C2003/8in Open Cell Backer Rod 750 ft length (Used in 3/8in Horizontal Joints / Used in all 1/4in Joints)
5/8in Open Cell Backer Rod C2015/8in Open Cell Backer Rod 500 ft length (Used in 3/8in Vertical Joints Only)
Thermal Isolating Washer C300Thermal Isolating Washer - High Grade / UV Resistant / Flame Retardant - Used with Ashrae Girt System
Thermal Isolating Back-Plate C311Thermal Isolating Back-Plate - High Grade / UV Resistant / Flame Retadant - Used with Ashrae Girt System / priced per 4.375in piece
#12 1-1/2in Hex Head F003#12 Hex Head 1-1/2in Gridworx Fastener for Steel Stud (1000) *PURCHASE REQUIRED
# 12 2in Hex head F004# 12 - 2in Hex head Fastener / 500 Count (Used to attach Gridworx or Z-Channel to Steel Stud) *PURCHASE REQUIRED FOR GRIDWORX SYSTEM*
#12 3in Hex Head - Stalguard F005# 12 - 3in Hex head Gridworx Fastener for Steel Stud- 500 Count *PURCHASE REQUIRED FOR GRIDWORX SYSTEM*
Elco Aggre-gator 1/4x 2-1/4in F104Gridworx 1/4in x 2-1/4in Hex-head Masonry Fastener - (500 per box) (Used to attach Gridworx to CMU or Concrete)*PURCHASE REQUIRED FOR GRIDWORX SYSTEM*
Elco Aggre-gator 1/4x 2-3/4 F105Gridworx 1/4in x 2-3/4in Hex-head Masonry Fastener - (500 per box) *PURCHASE REQUIRED FOR GRIDWORX SYSTEM*
2-3/4in KwikCon II SS Fastener F1141/4 x 2-3/4in Kwik Con II Fastener (500 per box) (Used to attach Gridworx to CMU or Concrete)*PURCHASE REQUIRED FOR GRIDWORX SYSTEM*
2 3/4in Conflex Fastener F1151/4in x 2 3/4in HWH Conflex Stagard Fastener (500 per box) *PURCHASE REQUIRED FOR GRIDWORX SYSTEM
1 1/8in Fastener F2011/4in - 20 x 1 1/8in Drilflex Stalgard priced per 1000 Used to attach Vertical Mullion to Z-Girt for Ashrae System *PURCHASE REQUIRED FOR GRIDWORX SYSTEM
1/4-20 x 1.5in Dril Flex F2031/4 - 20 x 1.5in Steel Stud Fastener (used to attach Gridworx to steel stud or z-channel) (1000 per box) *PURCHASE REQUIRED FOR GRIDWORX SYSTEM
1/4-20 x 2in Dril Flex F2041/4 - 20 x 2in HWH Dril Flex Stalgard (500 per box) *PURCHASE REQUIRED FOR GRIDWORX SYSTEM
1/4-20 x 2.5in Dril Flex F2051/4 - 20 x 2.5in HWH Dril Flex Stalgard (500 per box) *PURCHASE REQUIRED FOR GRIDWORX SYSTEM
1/4-20 x 3-3/8in Dril Flex F2061/4 - 20 x 3-3/8in HWH Dril Flex Stalgard (500 per box) *PURCHASE REQUIRED FOR GRIDWORX SYSTEM
T-31 Anchor 3/16in F300T-31 (3/16in x 1.5in) - used to attach 3-Prong Intermediate Support to back of stone panel creating lateral support. (100 pcs)
T-31 Anchor 1/4in F301T-31 (1/4in x 1.5in) - used to attach 3-Prong Intermediate Support to back of stone panel creating lateral support. (100 pcs)
Fischer Undercut Anchor 30mm F302Fischer Undercut Anchor 30mm - used to attach 3-Prong Intermediate Support to back of stone panel creating lateral support. Used with M8 nut (#512140)
Fischer Undercut Anchor 20mm F303Fischer Undercut Anchor 20mm - used to attach 3-Prong Intermediate Support to back of stone panel creating lateral support. Used with M6 nut (#512133)
Fischer Anchor 20mm ULTRA F304Fischer Undercut Anchor 20mm - used to attach 3-Prong Intermediate Support to back of stone panel creating lateral support. Used with skinny M6 nut (#512131)
Fischer Undercut Anchor 20mm F305Fischer Undercut Anchor 20mm - used to attach 3-Prong Intermediate Support to back of stone panel creating lateral support. Used with M8 nut (#512137)
Fischer Undercut Anchor 20mm F306Fischer Undercut Anchor 20mm - used to attach 3-Prong Intermediate Support to back of stone panel creating lateral support. Used with M8 nut (#512138)
Fischer Undercut Anchor 30mm F307Fischer Undercut Anchor 30mm - used to attach to back of stone panel creating lateral support. Used with M8 nut (#512143)
Fischer Undercut 12mm M8i F312Fischer Undercut Anchor 12mm - M8-i (#539 478)
Fischer Undercut 12mm M8i F315Fischer Undercut Anchor 15mm - M8-i (#539 479)
KEIL 7mm Undercut Anchor Bolt F350KEIL 7mm Undercut Anchor/ 25mm Grub Bolt/ M6 nut used to attached Fork and Locking Plate to back of panel
KEIL 7mm Undercut Anchor/Bolt F351KEIL 7mm Undercut Anchor/13mm Bolt used to attached Fork and Locking Plate to back of 12mm panel
KEIL 12mm Undercut AnchorBolt F352KEIL 8.5mm Undercut Anchor/14.5mm Bolt used to attached Fork and Locking Plate to back of 12mm panel with mesh
KEIL 20mm Undercut AnchorBolt F353KEIL 15mm Undercut Anchor/20.5mm Bolt used to attached Fork and Locking Plate to back of 20mm panel
KEIL5.5mm Undercut Anchor/Bolt F354KEIL 5.5mm Undercut Anchor/11.5mm Bolt used to attached Fork and Locking Plate to back of panel
KEIL5.5mm Undercut Anchor/10mm Bolt F355KEIL 5.5mm Undercut Anchor/10mm Bolt used to attached Fork and Locking Plate to back of panel
1/4-14 x 1.5in Dril Flex F4031/4 - 14 x 1.5in Steel Stud Fastener (used to attach Gridworx to steel stud or z-channel) priced per 1000 = 1 box
#12 - 1 1/2in Wood Screw F503# 12 - 1 1/2in Hex head stainless steel 500 Count (Used to attach Gridworx to Wood Stud)
#12 2in Stainless - Wood Stud F504# 12 - 2in Hex head stainless steel 500 Count (Used to attach Gridworx to Wood Stud)
1/4in x 3in Wood Stud Screw F5051/4in x 3in Wood Lag Bolt - (500 per box)
1/4in x 3in T-Star Wood Screw F5071/4in x 3in T-Star Wood Lag Bolt - (500 per box)
Set Adapter for Fischer M6 FM6Set Adapter for Fischer M6
Set Adapter for Fischer M8 FM8Set Adapter for Fischer M8
Standard L Bracket 1/4in Joint L0011/4in Joint L-Brackets - used with 1/4in Foam Tape / Provided and Priced per 6in piece
Standard L Bracket 1/4in BLACK L001B1/4in Joint L-Brackets (BLACK/PLANX) - used with 1/4in Foam Tape / Provided in 12 ft lengths / Priced per foot
Standard L Bracket 3/8in .4 L0023/8in Joint L-Bracket - Used with 3/8in Foam Tape. (.4) Provided and Priced per 6in piece
L Bracket 3/8in Black L002B3/8in Joint L-Bracket - Used with 3/8in Foam Tape. (.4) Provided in 12ft lengths / priced per ft / anodized BLACK
Standard L Bracket 3/8in .5 L0033/8in Joint L-Bracket - Used with 3/8in Foam Tape. (.5) Provided and Priced per 6in piece
L Bracket 3/8in .5 BLACK L003B3/8in Joint L-Bracket BLACK - Used with 3/8in Foam Tape. (.5) Provided in 12ft lengths / priced per ft / anodized BLACK
Standard L Bracket 1/2in Joint L0041/2in Joint L-Brackets - used with 1/2in Foam Tape / Provided and Priced per 6in piece
OPEN L Bracket 3/8in .5 BLACK L103B3/8in .5 Open Joint L-Bracket anodized BLACK provided in 12ft lengths - Priced per foot for use with rainscreen or open joint installation
L Bracket OPEN JOINT 3/4 inch L1073/4in Joint L-Bracket Open Joint provided in 12ft lengths - Priced per foot for use with rainscreen or open joint installation
Interior L-Bracket 1/4in Joint L201Interior 1/4in L-Bracket used for interior system - Provided and Priced per 6in piece
Interior L-Bracket 3/8in Joint L202Interior 3/8in Joint L-Bracket used for interior system / Provided and Priced per 6in piece
Slim L Bracket 1/4in Joint L211Slim 1/4in Joint L-Brackets - used with Foam Tape / Provided and Priced per 6in piece
Thin Panel 1/4in L-Bracket L300Thin Panel 1/4in L-Bracket - Placed in top Forks for Thin Panel System / Anodized Black / Priced per foot
Thin Panel 3/8in L-Bracket L302Thin Panel 3/8in L-Bracket - for Thin Panel System / Anodized Black / Priced per foot
Corner L Bracket - Black 3/8in L502Corner L Bracket - Black 3/8in
1 1/2in x 3in L Angle Aluminum LA1.5X3AL Angle Aluminum (1 1/2in x 3in) used at the soffit locations- over doorways or windows to provide surface to attach Gridworx/1.5 punch
2in x 1in L Angle LA2X1Fascia/Soffit Transition/ 2in x 1in angle/5052 H-32 aluminum/min thickness 1/8in/12ft lengths
2in x 2in L Angle LA2X2Fascia/Soffit Transition/ 2in x 2in angle/6000 series extruded aluminum/min thickness 1/8in/ 12ft lengths
2in x 3in L Angle LA2X3Fascia/Soffit Transition/ 2in x 3in angle/ 16 gauge galvanized with G90 coating / 12ft lengths
2in X 4in L Angle LA2X4Fascia/Soffit Transition/ 2in x 4in angle/ 16 gauge galvanized with G90 coating / 12ft lengths
2in x 5in L Angle Aluminum LA2X5AFascia/Soffit Transition/ 2in x 5in angle/6000 series extruded aluminum/min thickness 1/8in/ 12ft lengths
2in x 6in L Angle LA2X62in x 6in 12 gage Anodized Aluminum L-Angle/ 3003 H-14/ 12ft lengths
3in x 3in L Angle LA3X316 Gage L- Angle (3in x 3in) used at the soffit locations- over doorways or windows to provide surface to attach Gridworx
4"x6" Aluminum Angle LA4x6A4" x 6" Aluminum Angle/12ga Clear Anodized/3003-H14/12' Lengths
Strap Steel LS100Strap Steel
Silicon 10 oz S100Dow 790 10 oz. Tube of Silicone used in kerf before L-Bracket is inserted. (Color TBD)
Silicone 20oz TBD S200Dow 790 Silicone used in the Kerf before L-Bracket is inserted to seal joints between stone panels and other elements. COLOR TBD (Pecora or Dow 756 is addt'l)
S200-Joints S200-JointsDow 790 Silicone 20oz used in the JOINTS - COLOR TBD (Pecora or Dow 756 is addt'l)
S200-Kerf S200-KerfDow 790 Silicone 20oz used in the KERF - COLOR TBD (Pecora or Dow 756 is addt'l)**PURCHASE REQUIRED FOR GRIDWORX SYSTEM WARRANTY
GridLoc Glue S400GridLoc Adhesive used to assemble the Planx Clip to the back of the Planx Panel- continuously on both Top and Bottom of Panel / Priced per 28 oz Tube
Saw Blades 12 inch SAW1212in x 1in x 80-Tooth Aluminum Cutting Saw Blade
Silicon Gun for Tubes SG100Silicone Gun for 10 Oz. Tubes
Silicone Gun for Sausage Pack SG200Silicone Gun for 20 Oz. Sausages
Silicone Gun for GridLoc Glue SG400Silicone Gun for GridLoc Adhesive tubes
Cordless Gun for GridLoc Glue SG401Cordless Silicone gun for GridLoc Adhesive tubes
4in VWB Black V0014in Vertical Water Blocker used in head joints for Pressure Equalized Rain-Screen System (4in Vertical panels) BLACK
4in VWB Beige V001A4in Vertical Water Blocker used in head joints for Pressure Equalized Rain-Screen System (4in Vertical panels) BEIGE
8in VWB BLACK V0028in Vertical Water Blocker used in head joints for Pressure Equalized Rain-Screen System (8in Vertical panels) BLACK
8in VWB Beige V002A8in Vertical Water Blocker used in head joints for Pressure Equalized Rain-Screen System (8in Vertical panels) BEIGE
12in VWB BLACK V00312in Vertical Water Blocker used in head joints for Pressure Equalized Rain-Screen System (12in Vertical panels) BLACK
12in VWB Beige V003A12in Vertical Water Blocker used in head joints for Pressure Equalized Rain-Screen System (12in Vertical panels) BEIGE
24in VWB BLACK V00424in Vertical Water Blocker used in head joints for Pressure Equalized Rain-Screen System (24in Vertical panels) BLACK
Weep Vents WHITE WV001Weep Vents used every 2ft along the Starter J Channel to help channel water out of the wall cavity. (50 pcs.) WHITE
Weep Vents TAN WV002Weep Vents used every 2ft along the Starter J Channel to help channel water out of the wall cavity. (50 pcs.) TAN
Weep Vents GREY WV003Weep Vents used every 2ft along the Starter J Channel to help channel water out of the wall cavity. (50 pcs.) GREY
Quote on Drawing X1Quote is based on architectural drawings dated
Other Stone Engineering X10THERE WILL BE AN ADDITIONAL $1.00 PSF CHARGE TO ENGINEER STONE PROVIDED BY OTHERS THAN GRIDWORX.
Stone setting drawings X11Shop Drawings quote includes: Stone setting drawings and plans with corresponding connection details and work prints
6 wk lead time X126 week lead time for 1st submittal - subject to change depending on workload at receipt of PO/ 1-2 week lead time for addt'l shop drawing submittals
2 wk lead time X132 wk lead time for stone fabrication tickets once shop drawings are approved/Price is based on fabrication tickets based on typical panel sizes & modifications
in-field fabrication X14Panel lengths and certain panel modifications will require in-field fabrication. Please include this labor and potential stone waste in your Quote.
Simplified shop drawing X15Shop drawing quote does not include: Field measurements, changes to size or scope of cladding, cut to fit fabrication tickets
Need separate quote X16A request for any above items will require a separate quote and change order.
State Sales Tax Reseller Cert X17Following the Supreme Court's decision in South Dakota vs Wayfair, we have been advised by counsel of our requirement to acquire a State Sales Tax Reseller Cert
Appropriate amount of Sales Tax for the project X18from the purchaser of our products. Without this form, Gridworx will be required to collect an appropriate amount of Sales Tax for the project.
Resale Certificate X19Please provide a copy of your Resale Certificate with your Purchase Order. Thank you for your business!
Installation components X2Quote includes Gridworx Channels- installation components- freight.
Z-Channel X20***Subject to change depending on Engineering Review***
ASHRAE ENGINEERING X21***Subject to change depending on Engineering Review***
Dual Substrate X22***Subject to change depending on Engineering Review***
Soffits X23***Subject to change depending on Engineering Review***
Coping (anchored) X24***Subject to change depending on Engineering Review***
Countersink / T-31 X25***Subject to change depending on Engineering Review***
Stamped Calcs X26***Subject to change depending on Engineering Review***
Stamped Drawings X27***Subject to change depending on Engineering Review***
Canadian Stamp X28***Subject to change depending on Engineering Review***
Thermal Analysis X29***Subject to change depending on Engineering Review***
No exterior insulation materials X3Quote does not include exterior insulation- flashing materials or water-proofing materials.
Subject to engineering review X4Materials and quantities included within this quote are subject to change based on final engineering review.
No State Sales Tax X5This quote DOES NOT include State Sales Tax.
Install sq. ft. of stone X6This quote includes enough grid material to install sq. ft. of stone.
After approved shop drawings and engineering X7Lead Time of GRID material is TBD after approved shop drawings and engineering (or from PO). Custom extrusions do not have a guaranteed time.
Freight estimate is based on current X8Freight estimate is based on current rate, weight, and packaging process. FREIGHT IS SUBJECT TO CHANGE BASED ON ACTUAL SHIP DATE.
CUSTOMER UNLOADING MATERIALS X9CUSTOMER IS RESPONSIBLE FOR UNLOADING MATERIALS.
2in Z-Channel Z0202in Z-Channel - 16 Ga. Galvanized w/ G90 Zinc Coating/ Priced per 12ft length / ***Subject to change depending on Engineering Review***
2.5in Z-Channel Z0252.5in Z-Channel - 16 Ga. Galvanized w/ G90 Zinc Coating/ Priced per 12ft length / ***Subject to change depending on Engineering Review***
2 3/4in Z-Channel Z02752 3/4in Z-Channel - 16 Ga. Galvanized w/ G90 Zinc Coating/ Priced per 12ft length / ***Subject to change depending on Engineering Review
3in Z-Channel Z0303in Z-Channel - 16 Ga. Galvanized w/ G90 Zinc Coating/ Priced per 12ft length / ***Subject to change depending on Engineering Review***
4in Z-Channel Z0404in Z-Channel - 16 Ga. Galvanized w/ G90 Zinc Coating/ Priced per 12ft length / ***Subject to change depending on Engineering Review***
4.5in Z-Channel Z0454.5in Z-Channel - 16 Ga. Galvanized w/ G90 Zinc Coating/ Priced per 12ft length / ***Subject to change depending on Engineering Review***

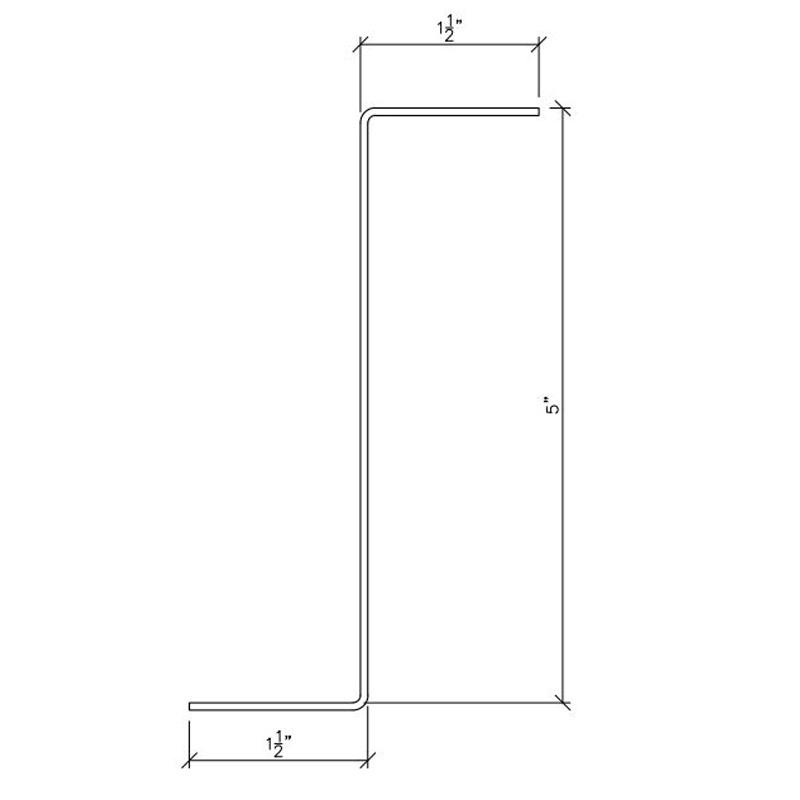

5in Z-Channel Z0505in Z-Channel - 16 Ga. Galvanized w/ G90 Zinc Coating/ Priced per 12ft length / ***Subject to change depending on Engineering Review***
6in Z-Channel Z0606in Z-Channel - 16 Ga. Galvanized w/ G90 Zinc Coating/ Priced per 12ft length / ***Subject to change depending on Engineering Review***
6 1/2in Z-Channel Z0656 1/2in Z-Channel - 16 Ga. Galvanized w/ G90 Zinc Coating/ Priced per 12ft length / ***Subject to change depending on Engineering Review***

201 Items
