Chemical Panel Handset
Engineer approved bonding adhesive
6005A aluminum alloy T6 temper
75% minimum recycled content
Panel thickness range: 8mm -12mm
About the system:
- Combination of mechanical Dead Load support and Adhered Wind Load Support
- Ideal for panel thicknesses 8mm-20mm
- Ability to support 126” x 56” panel sizes (subject to engineering review)
- Ideal for moderate climate zones
Advantages include:
- Cost effective with minimal parts and pieces
- Allows for a fast and efficient installation
- Lightweight – reduce structural requirements and transportation costs
- The Ability to remove/replace panels without affecting surrounding cladding
- Durability – resistant to rot and decay ensuring longer lifespan

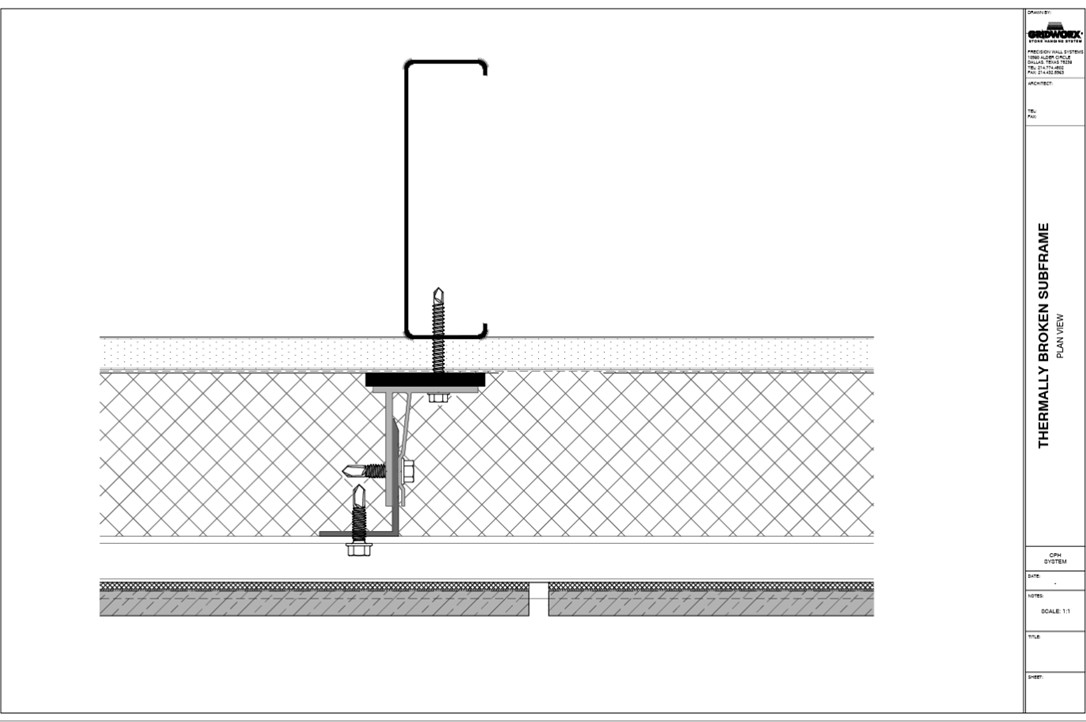

PLAN

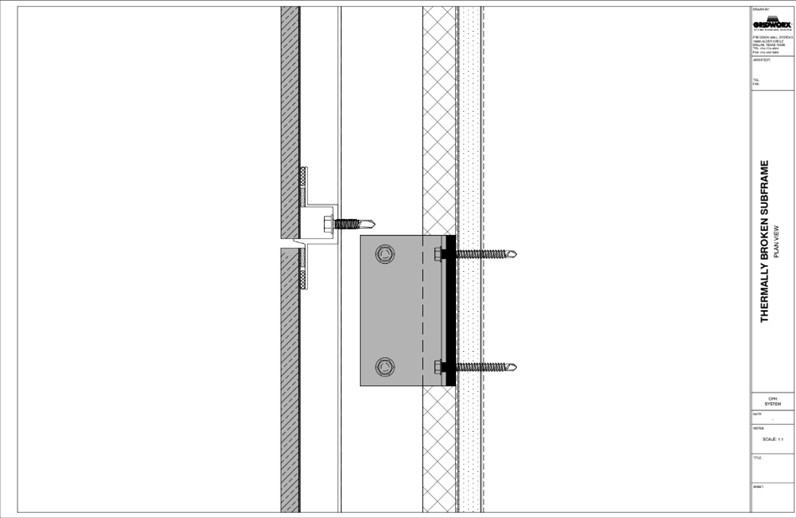

SECTION
